CES Rotor & Stator Guide: Popular Sets for 3-Phase Rendering & Screeding Machines

When it comes to choosing the right rotor and stator set for your 3-phase rendering or floor screeding machine, performance, compatibility, and efficiency are key. CES offers a trusted range of rotors and stators that fit popular machines like the Euromair MixPro 50, PFT G4, Utiform Quattro and EZE K4.

Whether you're spraying monocouche render, applying machine plasters, or pumping latex screeds, this guide breaks down CES's most popular rotor and stator sets—from the controlled precision of the D4-3 to the high-output power of the D8-2.

🌀 D4-3 Rotor & Stator Set (with Pin)

The Controlled Choice for Roughcast & Monocouche Renders

The D4-3 is one of CES's most popular rotor and stator sets for spraying roughcast render, pre-bagged monocouche, and machine-applied plasters. It delivers a slower, more controlled output, making it ideal for thin render systems or basecoat applications where finesse is more important than speed.

Perfect for:

• PFT G4

• Utiform Quattro

• Euromair MixPro 50

• Eze K4

• Similar 3-phase rendering machines

Technical Data:

• Length: 270 mm

• Diameter: 90 mm

• Grain size max.: 3 mm

• Capacity @ 400 rpm: 14 l/min

• Capacity @ 200 rpm: 7 l/min

• Max pressure: 30 bar

• Maintenance-free design

Also known as: D4-1/2, D4 1/2, D43

🌀 D6-3 Rotor & Stator Set

The Versatile Workhorse for Monocouche & Plaster

A best-seller in the CES range, the D6-3 delivers a balanced flow rate and pressure, perfect for daily rendering with popular monocouche products like Weber Pral M, Ecorend MR1, Parex Monorex, and K Rend K Mono.

Also suitable for:

• Machine plasters such as Weber OCR, Baumit KZP65

Technical Data:

• Length: 273 mm

• Diameter: 90 mm

• Grain size max.: 3 mm

• Capacity @ 400 rpm: 20 l/min

• Capacity @ 200 rpm: 10 l/min

• Max pressure: 30 bar

Compatible with:

• PFT G4

• Euromair MixPro 50

• Utiform Quattro

• EZE K4

• Other similar 3-phase rendering machines

🌀 D5-2.5 Rotor & Stator Set (with Pin)

Faster Performance for High-Volume Render Applications

If you're looking to speed up your application without compromising finish, the D5-2.5 offers a higher throughput, making it ideal for large projects or time-sensitive jobs.

Ideal for:

• Spraying monocouche renders

• Basecoat applications

• High-output render systems

Technical Data:

• Length: 270 mm

• Diameter: 90 mm

• Grain size max.: 3 mm

• Capacity @ 400 rpm: 22 l/min

• Capacity @ 200 rpm: 11 l/min

• Max pressure: 30 bar

• Maintenance-free construction

Machine compatibility:
PFT G4, Utiform Quattro, MixPro 50, Eze K4, and similar 3-phase machines.

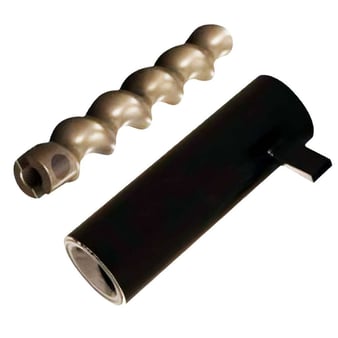

🌀 D8-2 Rotor & Stator Set

Heavy-Duty Set for Rendering & Screeding

For maximum output and power, the D8-2 rotor and stator set is built to handle high-volume render and latex screed pumping with ease. A must-have for contractors tackling large-scale commercial work.

Perfect for:

• Render spraying

• Latex screed pumping

Technical Data:

• Length: 270 mm

• Diameter: 90 mm

• Grain size max.: 3 mm

• Capacity @ 400 rpm: 32 l/min

• Capacity @ 200 rpm: 16 l/min

• Max pressure: 25 bar

Fits:

• MixPro 50

• PFT G4 & G5

• Utiform Quattro

• Other high-powered 3-phase machines

🛠️ Final Thoughts

Choosing the right rotor and stator set can make a massive difference in the efficiency, finish, and ease of your rendering or screeding work. Whether you're focused on precision, speed, or power, CES offers proven options tailored to your application.

Quick Comparison Table:

Need help choosing the right rotor and stator for your machine or material?
Contact our technical team or browse the full CES rotor and stator range online.
